DHF Model

About

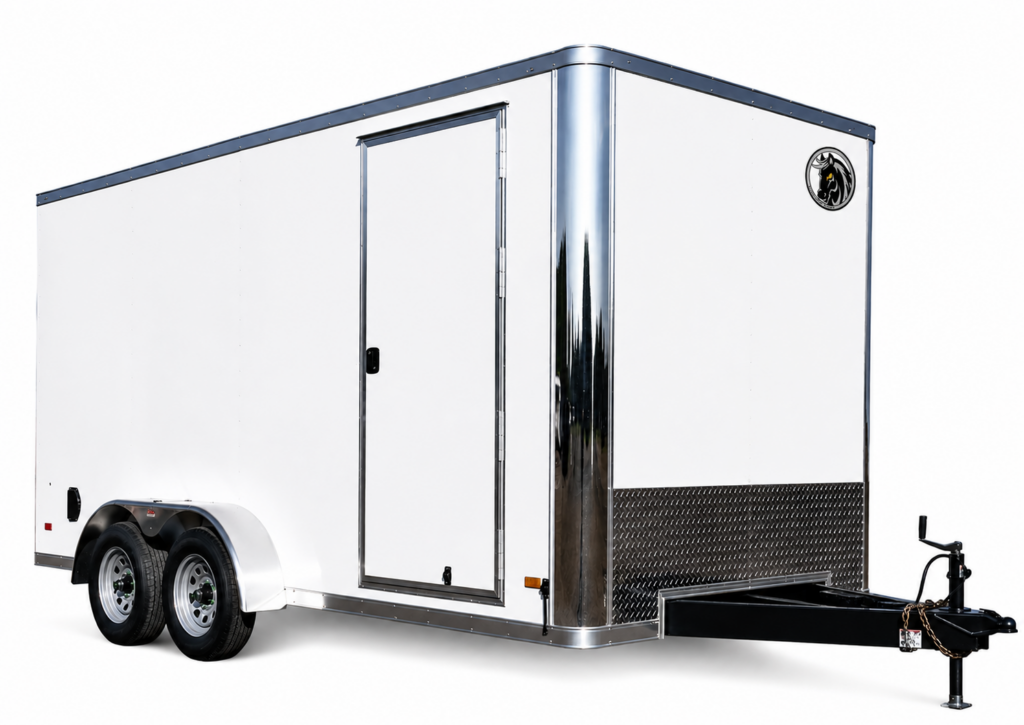

The Darkhorse Flat Model is a cargo trailer that seamlessly blends classic elegance with modern utility. More than just a way to haul cargo, the DHF makes a statement with its timeless design, premium construction, and versatile functionality.

Built for customers who appreciate both style and performance, the DHF delivers the durability, reliability, and craftsmanship needed for work, recreation, or everyday hauling. With a variety of available options and upgrades, you can customize the DHF to fit your exact needs while enjoying a trailer that is built to perform and designed to stand out.

Features

1500 Series – Standard

  • 2” Coupler on Single Axle Models
  • 2-5/16” Coupler on Tandem Axle Models
  • Spring Axle with 4” Drop
  • Radial Tires on Gray Wheels
  • Rubberized Armor-Coated Tongue and Bumpers
  • Automotive Grade Undercoating
  • Painted Roof Bows
  • Flat Front
  • Tube Main Rails
  • 24” On-Center Floor Crossmembers
  • 24” On-Center Wall Posts and Tube Roof Bows
  • (4) Recessed 5,000 lb. D-Rings w/ Ramp Door
  • 3/4” High-Performance Floor
  • 6mm Plywood Walls w/ 6mm Plywood Trim
  • 36” Solid RV Side Door
  • Plastic Door Holdbacks
  • Ramp Door w/ Flap or Double Rear Doors
  • One-Piece Aluminum Roof
  • .030 Exterior Metal
  • Screwed Exterior w/ Color Matching Screws where available
  • Chrome Front Corners
  • 24” Tall .045 Stoneguard
  • .063 Smooth Fenders
  • 3” Aluminum Top-Rail Trim
  • 1-1/2” Aluminum Bottom Trim
  • 4-Way Connector on Single Axle Models
  • 7-Way Connector on Tandem Axle Models
  • Breakaway Battery, Box, and Switch for All Brake Axles
  • All LED Lighting
  • (1) LED Sidewall Mounted Dome Light
  • (2) LED Dome Lights w/ Switch on 7’ Wides (14’ or longer) and 8.5’ Wides
  • 3-Year Limited Warranty

Option 2500 Series Upgrades

  • 16” On-Center Floor Crossmembers
  • 16” On-Center Wall Posts
  • 1 Pair – Light Duty Rear Stabilizer Jacks (6, 6.5, and 7′ wide units)
  • 24” Side Door (5’ Wides)
  • 36” Solid RV Door
  • Aluminum Door Holdbacks
  • 3/8” Plywood Walls with 3/8” Plywood Trim
  • 3” Aluminum Bottom Rail
  • Semi-Screwless Exterior with Screws on Seams
  • LED Light with Switch (6-6.5’ Wides)
  • LED Dome Lights with Switch (7-7.5’ Wides)
  • Light-Duty Stabilizer Jacks with Ramp Door (5’ to 7’ Wides)

Option 3500 Series Upgrades

  • 6″ Extra Height – 78″ Interior Height (6, 6.5, and 7′ wide units)
  • 16” On-Center Floor Crossmembers
  • 16” On-Center Wall Posts and Tube Roof Bows
  • 16″ On-Center Roof Crossmembers
  • 1 Pair – Light Duty Rear Stabilizer Jacks (6, 6.5, and 7′ wide units)
  • 3/8” Plywood Walls with 3/8” Plywood Trim
  • (4) Recessed 5,000 lb. D-Rings with Ramp Door
  • Electrical & Lighting
  • (2) 12V LED Dome Lights with Switch
  • (2) Loading Lights in Rear Spoiler with Switch
  • Semi-Screwless Exterior with Color Matching Screws on Seams
  • 3” Aluminum Bottom Rail
  • Rear Spoiler
  • 36″x72″ Solid RV Side Door with Flush Lock and Bar Lock
  • Aluminum Door Holdbacks
  • Medium Duty Ramp Door with Flap (7′ wide)
  • Double tube ramp door (6′ and 6.5′ wide)
Specifications 6x10 SA30 6x12 SA30 6.5x10 SA30 6.5x12 SA30 6.5x14 SAE35 7x12 SA30 7x14 TA35 7x16 TA35 7.5x14 TA35 7.5x16 TA35 8.5x20 TA35 8.5x20 TA52 8.5x24 TA52
Overall Length14'16'14'16'18'16'18'20'18'20'24'24'28'
Overall Width92"92"98"98"98"102"102"102"102"102"102"102"102"
Overall Height91"91"91"91"91"91"91"91"101"101"101"101"101"
Interior Length10'12'10'12'14'12'14'16'14'16'20'20'24'
Interior Width68"68"74"74"74"80"80"80"86"86"96"96"96"
Interior Height72"72"72"72"72"72"72"72"78"78"78"78"78"
Platform Height17"17"18"18"18"18"20"20"20"20"20"21"21"
Rear Opening Height66"66"66"66"66"66"66"66"72"72"75"*75"*75"*
Rear Opening Width64"64"70"70"70"76"76"76"82"82"92"92"92"
Dist. Between Cables63"63"69"69"69"75"75"75"81"81"91"91"91"
Top of Hitch Ball16"16"17"17"17"17"19"19"19"19"19"20"20"
Hitch Ball Size2"2"2"2"2"2"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"
Tire SizeST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST225/75R15ST225/75R15
Load RangeCCCCCCCCCCCDD
Wheel Bolt Pattern5-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.55-Bolt/4.56-Bolt/5.56-Bolt/5.5
AxlesSingleSingleSingleSingleSingleSingleTandemTandemTandemTandemTandemTandemTandem
Axle Type4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop4" Drop
BrakesOptionalOptionalOptionalOptionalElectricOptionalElectricElectricElectricElectricElectricElectricElectric
GVWR2,990 lbs.2,990 lbs.2,990 lbs.2,990 lbs.3,500 lbs.2,990 lbs.7,000 lbs.7,000 lbs.7,000 lbs.7,000 lbs.7,000 lbs.9,990 lbs.9,990 lbs.
Hitch Weight170 lbs.210 lbs.170 lbs.200 lbs.250 lbs.210 lbs.200 lbs.230 lbs.170 lbs.180 lbs.350 lbs.300 lbs.420 lbs.
Curb Weight1,280 lbs.1,480 lbs.1,360 lbs.1,510 lbs.1,820 lbs.1,600 lbs.2,300 lbs.2,420 lbs.2,430 lbs.2,680 lbs.3,100 lbs.3,130 lbs.3,820 lbs.
Payload Capacity1,710 lbs.1,510 lbs.1,630 lbs.1,480 lbs.1,680 lbs.1,390 lbs.4,700 lbs.4,580 lbs.4,570 lbs.4,320 lbs.3,900 lbs.6,680 lbs.6,170 lbs.
*With Beaver Tail

Specifications are based on the 1500 Series.  Specifications, features, and standards are subject to change without notice
